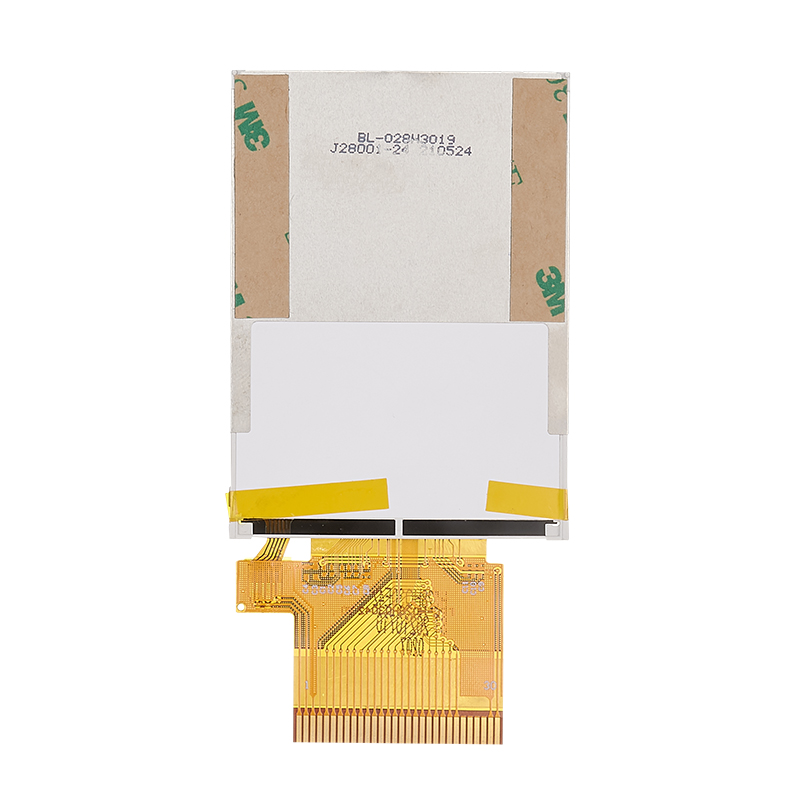

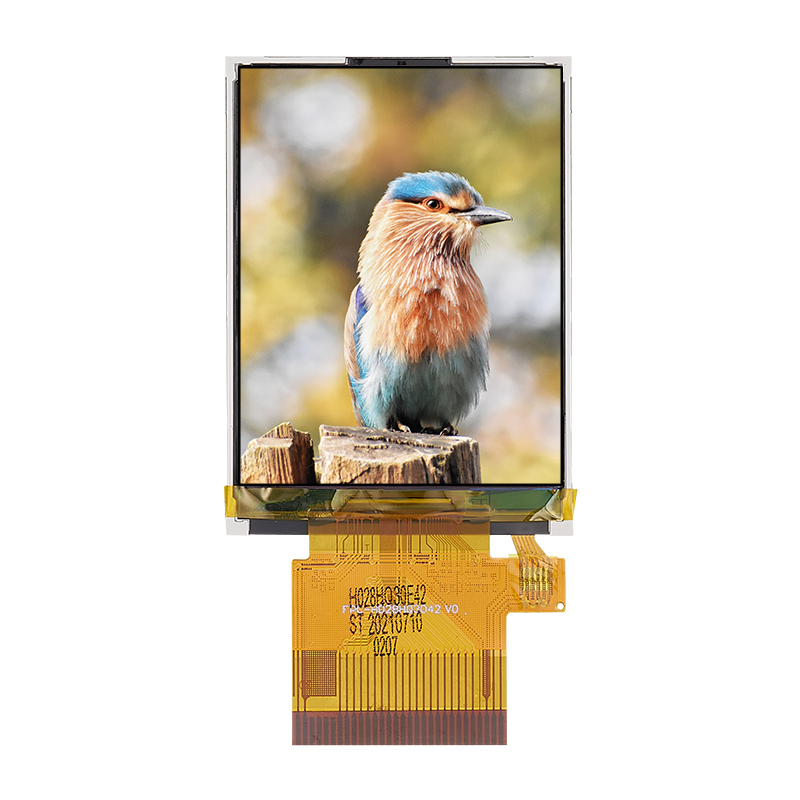

2.8寸LCD液晶屏 LCD彩屏 240*320分辨率 MCU接口 2.8寸液晶显示模组
型号：H028HQ30E2542
尺寸：2.8 inch
分辨率： 240(RGB) × 320
接口方式：30pin 16bit MCU
外观尺寸（显示区域）：51.80*82.54*3.25（43.2*57.6）
亮度：250 nits
服务热线：139-2345-7816（雷总）
按需求定制
质量保障
品牌认证
型号：H028HQ30E2542
尺寸：2.8 inch
分辨率： 240(RGB) × 320
接口方式：30pin 16bit MCU
外观尺寸（显示区域）：51.80*82.54*3.25（43.2*57.6）
亮度：250 nits
按需求定制
质量保障
品牌认证
产品参数
产品图纸
尺寸、接口等规格均可定制，可配电容触摸、电阻触摸。如有其它规格需求请联系我们，我们将竭诚为您服务。
一、产品参数：
Size | 2.8inch |
Resolution | 240(horizontal)*320(Vertical) |
Interface | 16-bit MCU |
Connect type | Connector |
Display Colors | 65K |
Technology type | a-Si |
Pixel pitch (mm) | 0.180x 0.180 |
Pixel Configuration | R.G.B.Stripe |
Display Mode | Normally White |
ST7789V | |
Viewing Direction | 12'clock |
Gray Scale Inversion Direction | 6O'clock |
LCM +CTP(W x H x D) (mm) | 51.80*82.54*3.25 |
Active Area(mm) | 43.2*57.6 |
With /Without TSP | Without |
Weight (g) | TBD |
LED Numbers | 4LEDs |
二、产品接口定义：
PIN NO | PIN NAME | DESCRIPTION |
1 | LEDK1-4 | Power for LED backlight (Cathode)
|
2 | LEDA | LED backlight anode |
3 | GND | Ground |
4 | RESET | Reset signal input terminal, active at ‘L' |
5 | DB15 | DATA BUS
|
6 | DB14 | DATA BUS
|
7 | DB13 | DATA BUS
|
8 | DB12 | DATA BUS
|
9 | DB11 | DATA BUS
|
10 | DB10 | DATA BUS
|
11 | DB9 | DATA BUS
|
12 | DB8 | DATA BUS
|
13 | DB7 | DATA BUS
|
14 | DB6 | DATA BUS
|
15 | DB5 | DATA BUS
|
16 | DB4 | DATA BUS
|
17 | DB3 | DATA BUS
|
18 | DB2 | DATA BUS
|
19 | DB1 | DATA BUS
|
20 | DB0 | DATA BUS
|
21 | RD | Read signal |
22 | WR | Write signal |
23 | RS | This pin is used to select “Data or Command” in |
24 | CS | Chip select |
25 | NC | NO connect |
26 | NC | NO connect |
27 | NC | NO connect |
28 | NC | NO connect |
29 | GND | Ground |
30 | VCC | power supply
|

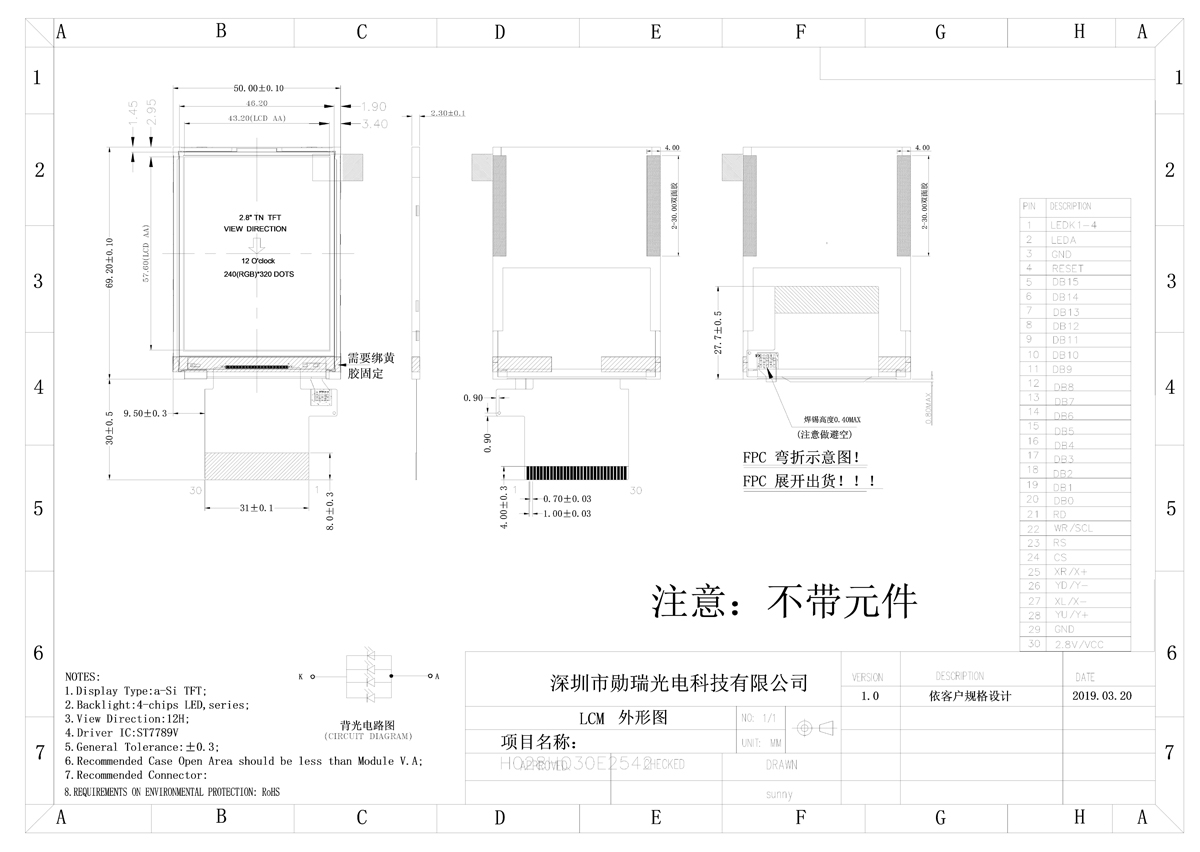

三、产品尺寸图纸
